Delta 3D Printing
40100 CLAY
40100 CLAY

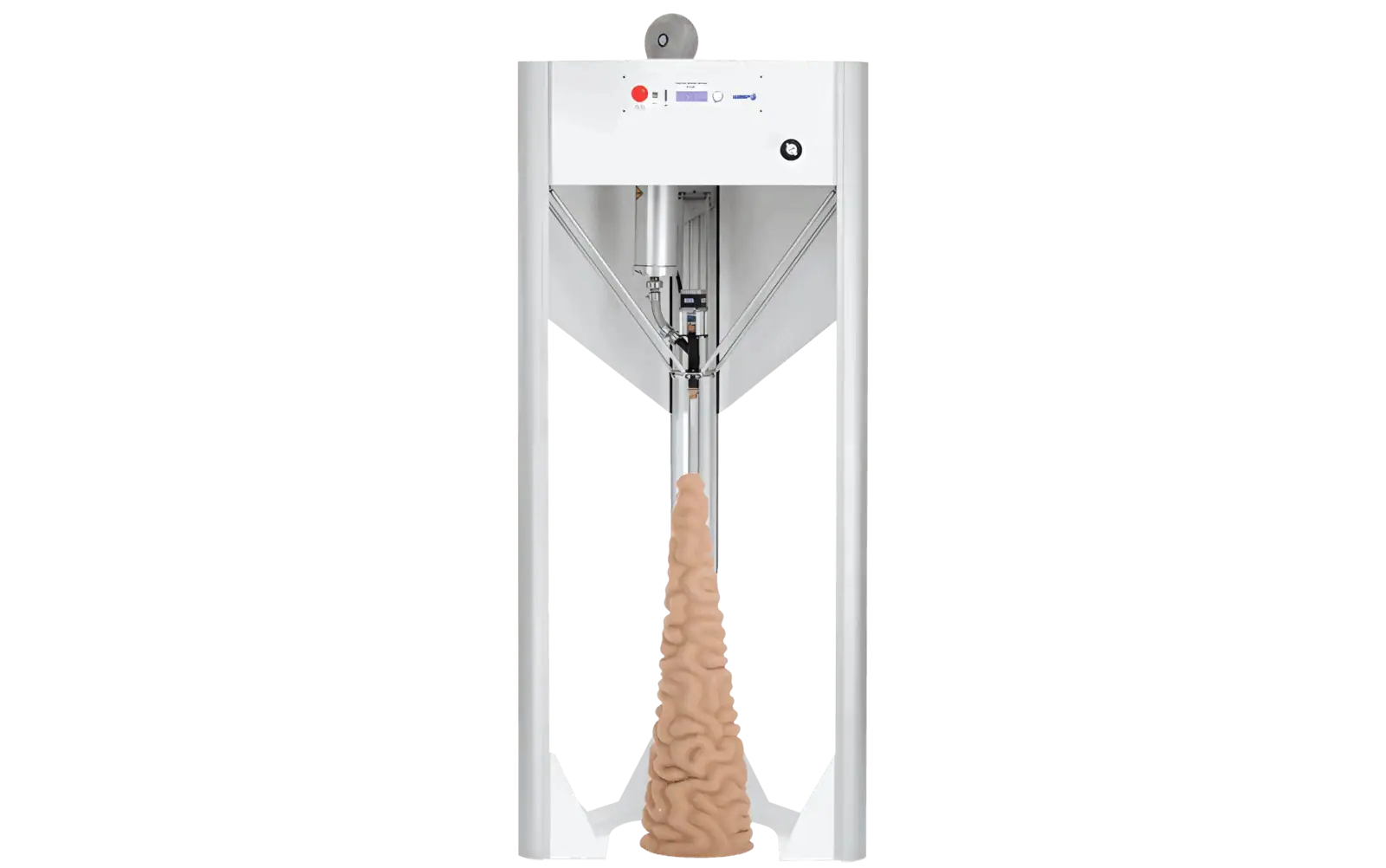

WASP 40100 CLAY is a 3D printing solution that combines the concept of additive manufacturing, customization and mass production.
Request a QuoteINDUSTRIALS
Architectural
Health
Space and Aviation
Machine
Automotive
With Delta WASP 40100 Clay it is possible to print directly onto the floor or onto a removable steel printing surface. You can also continue printing by simply moving the printer and without waiting for the part to dry. LDM WASP Extruder XL 3.0 is ideal for fast and large prints.
Technicial Specifications10
Building Volume
Ø400 x h 1000 mm
Min Layer Height
0,5 mm
Max Print Speed
150 mm/s
Acceleration
500 mm/s2
LDM WASP Extruder
1,5, 2, 3 mm (standard)
LDM WASP XL extruder nozzle
4, 6, 8 mm
Product Dimensions
770 x 850 x 1950 mm
Product Weight
80 kg
Power Consumption
220/240 V 50/60 Hz
Required Air Compressor
min pressure 8 bar
Materials1
Ceramic mixtures: Clay, porcelain, pottery, etc.
Let's shape our future together.
As the 3D Promakim team, we support you in directing the production of the future. Contact us so that we can offer you special technologies in line with your needs.
